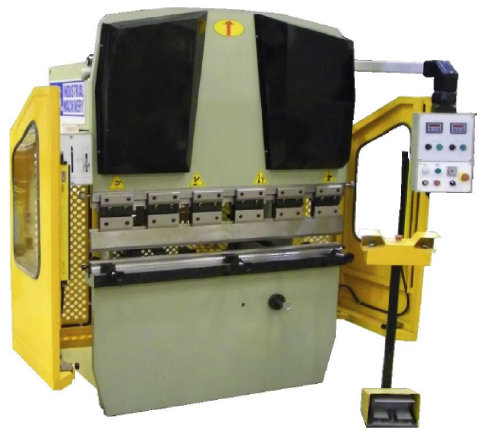

US  INDUSTRIAL  22  TON  x  4 Ft  HYDRAULIC  PRESS  BRAKE
Model  USHB22-4
STANDARD  EQUIPMENT:
AVAILABLE  OPTIONS:
US  INDUSTRIAL  22 TON  x  4'  HYDRAULIC  PRESS  BRAKE
 BUCK
B U C K' S   P R E C I S I O N    M A C H I N E   T O O L S
G U N T E R S V I L L E,  A L A B A M A   3 5 9 7 6
TEL: 2 5 6 - 5 8 2 - 5 3 5 3     www.buckspmt.com
S
Home
About Us
Contact Us
SPECIFICATIONS:

• Working Pressure: 22 Tons
• Length of Working Table: 51.9”
• Distance Between Housings: 40.1”
• Throat Depth: 7.8”
• Stroke Adjustment of Ram: 2.75”
• Ram Travel: 3.14”
• Open Height: 9.64”
• Rapid Ram Travel Speed: 2.4”/sec.
• Rapid Ram Retreat Speed: 2.0”/sec.
• Pressing Speed: Dependent on Tool Load
• Hydraulic Oil Capacity: 21 Gal.
• Motor Horsepower: 7.5 HP
• Net Weight: 6.600 lbs.
• Length: 73”
• Width: 56”
• Height: 77”

US  INDUSTRIAL  22  TON  x  4'  HYDRAULIC  PRESS  BRAKE
• Power Front Operated Back Gauge
• Power Ram Depth Control
• Digital Displays
• All Steel Construction
• Sick 2000 Light Curtain
• Free Gooseneck Punch and multi-opening Die for up to 90° forming in  10  Gauge  Mild  Steel

 • Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO warranty on these items.
• 2-Axis CNC Back Gauge:
• Installation  And  Training
