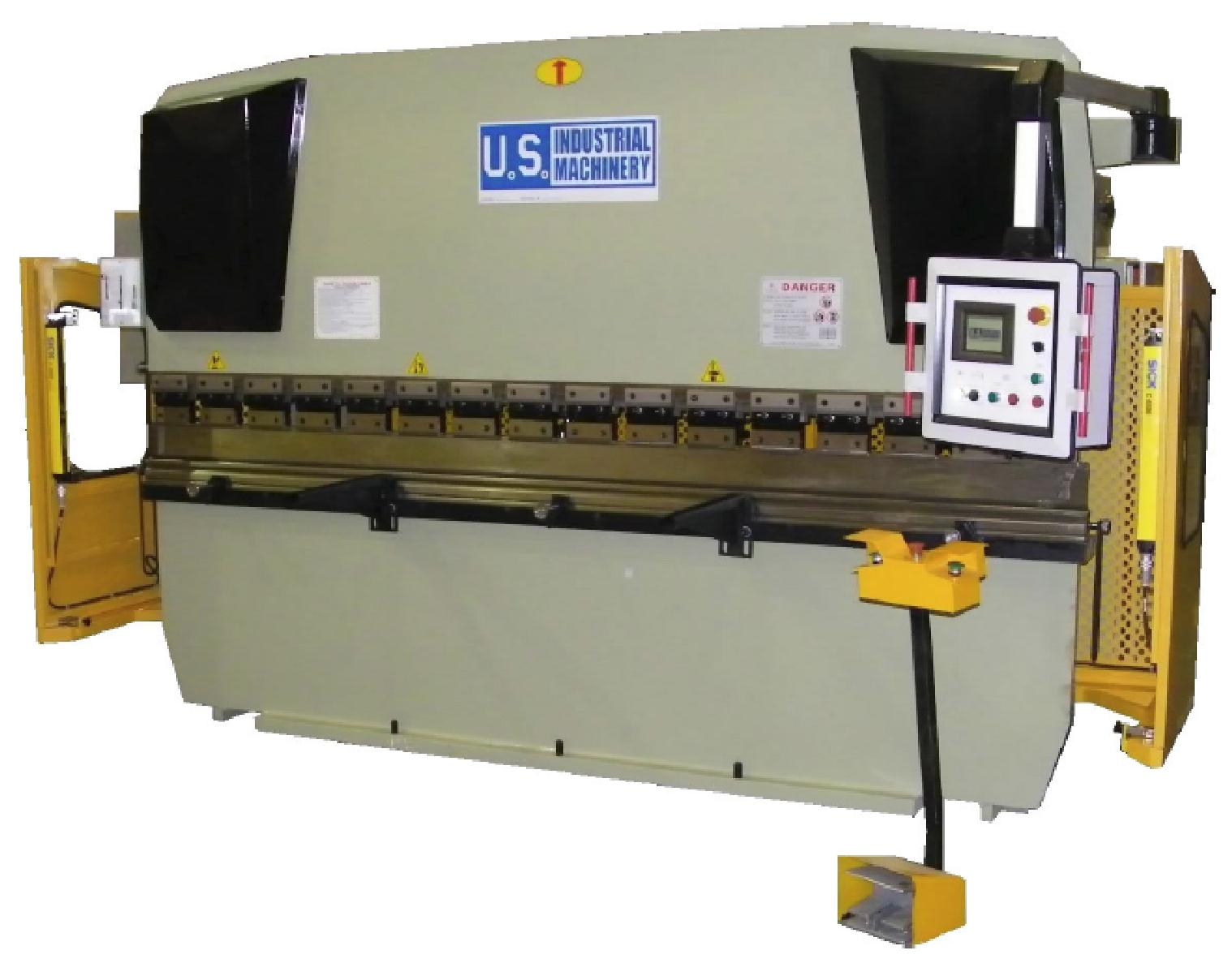

US  INDUSTRIAL  88  TON  x  10 Ft  HYDRAULIC  PRESS  BRAKE
Model  Number  USHB88-10
STANDARD  EQUIPMENT:
AVAILABLE  OPTIONS:
US  INDUSTRIAL  88 TON  x  10'  HYDRAULIC  PRESS  BRAKE
 BUCK
B U C K' S   P R E C I S I O N    M A C H I N E   T O O L S
G U N T E R S V I L L E,  A L A B A M A   3 5 9 7 6
TEL: 2 5 6 - 5 8 2 - 5 3 5 3     www.buckspmt.com
S
Home
About Us
Contact Us
SPECIFICATIONS:

• Working Pressure: 88 Tons
• Length of Working Table: 125.9”
• Distance Between Housings: 106.2”
• Throat Depth: 9.8”
• Stroke Adjustment of Ram: 1.96”
• Ram Travel: 3.93”
• Open Height: 13.7”
• Rapid Ram Travel Speed: 2.4”/sec.
• Rapid Ram Retreat Speed: 2.0”/sec.
• Pressing Speed: Dependent on Tool Load
• Hydraulic Oil Capacity: 79 Gal.
• Motor Horsepower: 10 HP
• Net Weight: 14,332 lbs.
• Length: 148”
• Width: 64”
• Height: 90”
STANDARD EQUIPMENT: (All of the following comes with the machine)

• U.S.INDUSTRIAL 2-AXIS CNC BACK GAUGE
  *Controls both ram depth and back gauge. Positioning storage
  capacity: 100 programs of 20 bends per program.

• Ram Deflection Adjustment
• Mechanical Ram Depth Control
• Massive Torsion Bar or Parallelism
• Forged Heavy Duty Cylinder and Cylinder Body
• Three Speed Ram
  *Rapid Approach, Bending Cycle and Rapid Retreat.

• Bottom Time Delay
• All Steel Construction
• Inching, Single Cycle and Continuous Operation
• Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel

• Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO warranty on these items.
• CNC 2-Axis Color Graphic Control
•Sick Model 4000 Light Curtain System  *For State of the Art Safety

• Third Axis (Back Gauge Height)
• CNC Controlled Hydraulic Auto Crown
• Servo Back Gauge
• Installation and Training
