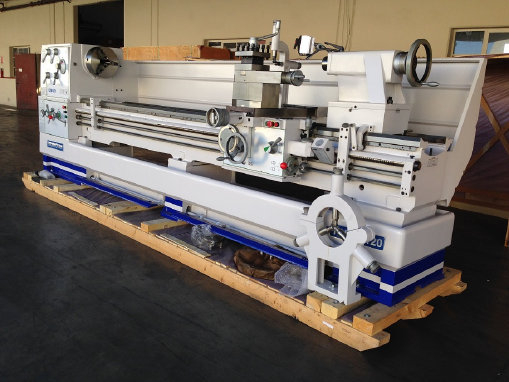

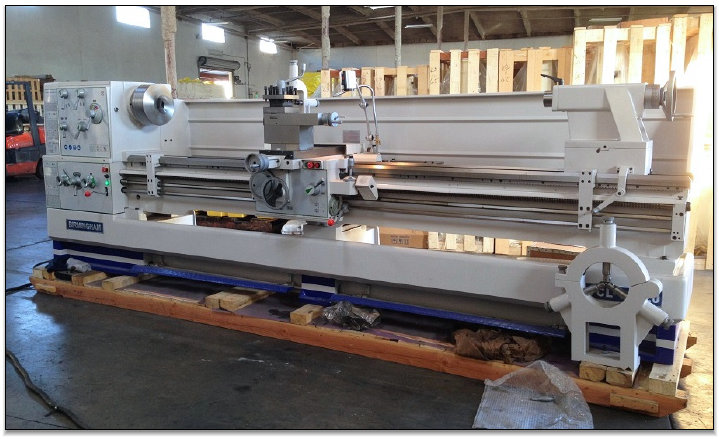

BIRMINGHAM YCL-32120 LATHE

Discount Prices ! Discount Prices ! Discount Prices !


BIRMINGHAM LATHE	Details
Models	YCL-32120
Size Class	32 x 120
Swing over Bed	31.49"
Distance between centers	118.11"
Max. swing over cross slide	22.44"
Max. swing in gap	40.74"
Effective length in gap	9.84"
Spindle nose	D1-8
Diameter of spindle thru bore	4 1/8"
Taper of spindle center	MT # 7 / MT # 5

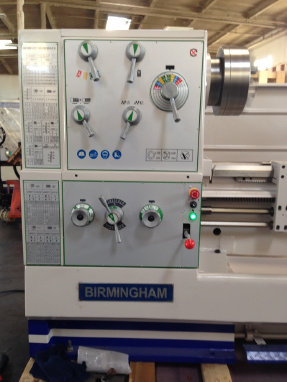

Spindle speeds - 16 Steps	26 To 1,600 RPM
Longitudinal feeds: 25 kinds	0.00083" to 0.02774" Rev.
Cross feeds: 25 kinds	0.00165" to 0.05497" Rev.
Metric threads: 54 kinds	0.45 to 120 mm
Inch threads: 54 kinds	7/16 to 80 TPI
Module threads: 46 kinds	0.25 to 60 mp
Diametral pitch threads: 42 kinds	7/8 to 160 DP
Max. travel of cross slide	14 1/2"
Max travel of compound rest	9 1/4"
Diameter of tailstock quill	3 1/2"
Taper of tailstock quill center	MT # 5
Max. travel of tailstock quill	9 1/4"
Main motor	10 HP, 230/460V/60 HZ, 3 phase - Prewired 230V
Coolant pump	1/8 HP, 230/460V/60 HZ, 3 phase Prewired 230V
Machine Weight	8,620 Lbs Net ( Gross 9,920 Lbs )

DESCRIPTION & FEATURES:

Some of the many features included on the Birmingham YCL-32120 Lathe are 4-Way Rapid Traverse, Removable Gap Bed, 10 HP Main motor, D1-8 Spindle Mount with 4 1/8" spindle bore, 16 Speeds ( 26 to 1600 RPM ) , 54 kinds of Inch threads, 54 kinds of Metric threads, 42 kinds of Diametrical Pitch threads and 46 kinds of Module Pitch threads . The Main Spindle is hardened & precision ground and the bed is made of a fine grain high tensile strength cast iron . The Bedways are Induction hardened & precision ground and all gears & shafts are hardened & precision ground . No change gears are required for the most commonly used threading applications . The Main Spindle is supported at 3 - points by high precision bearings . A one piece cast iron base is standard

STANDARD ACCESSORIES INCLUDED:

12.4” 3-Jaw Chuck ( 2- Piece Jaws ) , 15.74” 4-Jaw Chuck ( 2 Sets Reversible Jaws ) , 4-Way Rapid Traverse, 17.70” Face Plate, 7” Steady Rest, Follow Rest, Gap, 4-Way Tool Post, Threading Chasing Dial, (2) Dead Centers, Reducing Sleeve, Full Length Splash Guard, One-Piece Cast Iron Base, Foot Brake, Halogen Work Light, Coolant System, Leveling Pads, Tools

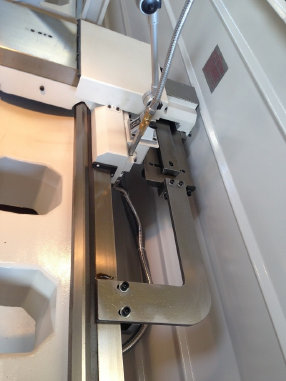

FREE TAPER ATTACHMENT - Installed

BIRMINGHAM YCL- 32120 LATHE - New

A l l R i g h t s R e s e rv e d

Optional Accessories:

12" Large Steady Rest

Digital Readout: Newall Or Birmingham Uniq
