BIRMINGHAM
Surface  Grinders
BIRMINGHAM  8 x 18 SURFACE  GRINDER, New
Model  WSG-818

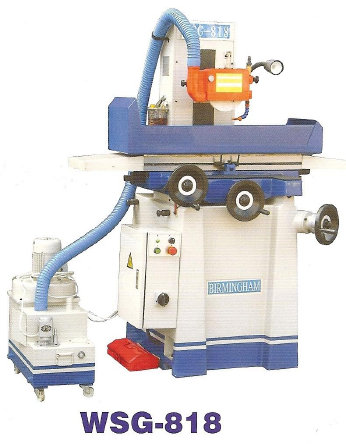

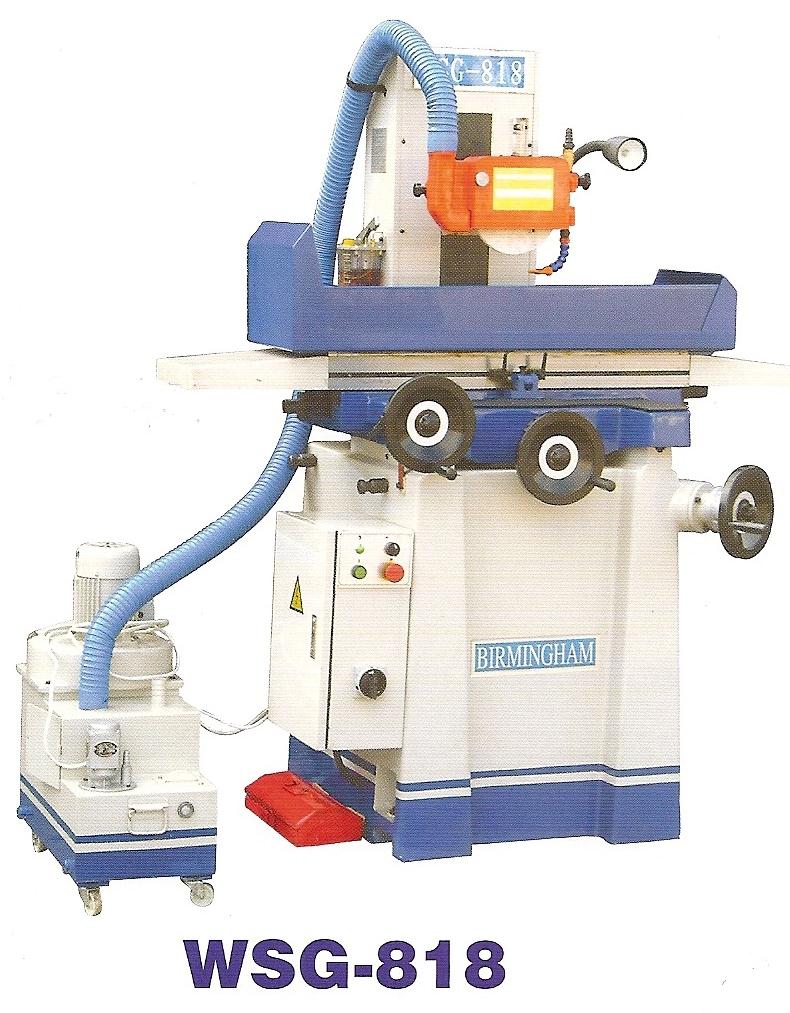

BIRMINGHAM  WSG-818  8 x 18 SURFACE GRINDER
Model  WSG-818  Hand  Operated  Surface  Grinder, New
 WSG-818         Details
 Table  Size    8"  x  18"
 Maximum  Grinding  Length     19-3/4"
 Maximum  Grinding  Width  8-1/2"
 Maximum  Distance  From  Spindle  Center  To  Table     19-3/4"
 Maximum  Longitudinal  Travel   21-5/8"
 Maximum  Cross  Travel  9"
 Logitudinal  Travel  Per  Revolution  3-15/16"
 Cross  Travel  Per  Revolution   0.2"
 Cross  Travel  Per  Graduation  0.0008"
 Vertical  Travel  Per  Revolution  0.05"
 Vertical  Travel  Per  Graduation  0.00025
 Peripheral  Speed  Of  Wheel  110 Ft/S
 Spindle  Speed  3,600  RPM
 Grinding  Wheel  Size  8" x 1/2" x 1-1/4"
 Spindle  Motor  2 HP
 Dust  Collector  Motor  1/2  HP
 Coolant  Pump  0.05  HP
 Lubricating  Pump  0.02
 Overall  Dimensions   59"  Long  x  47"  Wide  x  72"  High
 Net  Weight  2,350 Lbs
BIRMINGHAM  WSG-818  8 x 18  SURFACE  GRINDER New
