 GMC  LATHE                                            Specifications
 Model   GML-40120H , GML-40180
 Size   40"  x  120"  ,  40"  x  180"
 Swing  over  bed   40"
 Distance  between  centers  120" , 180"
 Max  swing  over  cross-slide   27-9/16"
 Max  swing  in  gap   47-1/4"
 Width  of  bed   24"
 Effective  length  in gap  to  spindle  15"
 Effective  length  in  gap  to  chuck  jaws  9"
 Spindle  hole  dia.  5-1/8"
 Spindle  mount  D1-11
 Taper  of  spindle  center  MT # 5
 Spindle  speeds  ( 18  Steps )  10 - 800  RPM
 Longitudinal  feeds  0.0027 - 0.66  IPR, 64  kinds
 Cross  feeds   0.00157 - 0.378  IPR, 64  kinds
 Threads  Details
 Inch  threads  32 - 2  TPI  31  kinds
 Metric  threads  1 - 240 mm  , 53  kinds
 Diamentral  pitch  threads  60 - 1/2  DP , 47  kinds
 Module  threads  0.25 - 60  MM , 47  kinds
 Carriage  Details
 Maximum  travel  of  top  slide  8-7/8"
 Maximum  travel  of  cross-slide  24-3/16"
 Longitudinal  rapid  traverse  126" / Min
 Cross rapid  traverse  75" / Min
 Tailstock  Details
 Diameter  of  tailstock  quill  4-3/4"
 Maximum  travel  of  tailstock  quill  10-5/8"
 Taper  of  tailstock  quill  center  M.T. # 6
 Motors  Details
 Main  motor  ( Pre-wired  220  V / 3 )  20  HP, 220/440  V, 3  phase
 Rapid  traverse  motor  2  HP, 220/440  V, 3  phase
 Coolant  pump motor Pre-wired  220 Volt / 3 )  1/8  HP, 220/440  V, 3  phase
 Machine  net  weight  Details
 GML-40120  15,900  lbs
 GML-40180  17,700  lbs
 Overall dimensions   Details
 GML-40120   L x W x H  204"  x  67"  x  78"
 GML-40180   L x W x H  263"  x  67"  x  78"
GML-40120H  and  GML-40180H  LATHES
40  x  120 Lathe , 40  x  180  Lathe
GMC  Model  GML-40120H  and  GML-40180H Lathes - New
DESCRIPTION  &  FEATURES:

These  New  40"  Swing GMC  GML-40120H  and  GML-40180H  metal  cutting  Lathes  carry  a  40"  swing  over  the  cross-slide  and  each  is  powered  by  a  20  HP  main  motor. Both  are  constructed  of  high  tensile  strength  cast  iron  and  are  incorporated  with  induction  hardened  and  ground  bed ways. Each  of  the  lathes  is  equipped  with  rapid  traverse .  These  ISO 9001  certified  lathes  carry  all  hardened  and  precision  ground  gears  &  shafts  within  the  headstock  and  a  automatic  lubrication  system  for  the  headstock  and  feed  box. 18  Spindle  Speeds  range  from  10  to  800  rpm . The   footbrake  and  a  more  than adequete  5-1/8"  spindle  bore  make  either  of  these  lathes  a  great  choice  for  any  machine  shop  floor.

Inch, metric, diametral  pitch  and  module   threading  are  standard  on  each  lathe.

More  info  on  standard  features  and  equipment  can be  found  below.

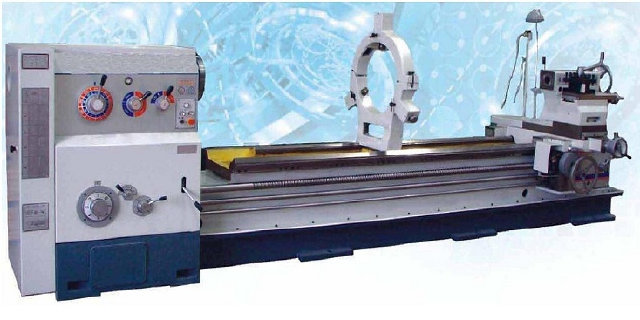

 Model  GML-40120H  Lathe - Picture

MACHINE  STANDARD  FEATURES:



· ISO 9001 certified

· Large  spindle  bore 5 1/8”

· Heavy  Duty  spindle D1-11

· Heavy  Duty  guideway  width  24”

· Heavy  Duty  main  motor  20 HP

· 18  spindle speeds  from 10 to 800 rpm

· 31  kinds of inch threads, and  53  kinds  of  metric  threads

· Threading and  feeding  rate  change  without  changing  gears

· 4-way  rapid  traverse to  carriage and  cross  slide

· Spindle  is  balanced, hardened  and  precision  ground

· Spindle  is supported  at  3-point  by  high  precision  bearings

· All  gears  and  shafts are  hardened  and  precision  ground

· Guideways  induction  hardened  and  precision ground

· Automatic  lubrication  system  in  headstock  and  feed  box

· Adjustable  hydraulic clutch  for  spindle  turning  and  brake

· Power 220V /208V , 3  phase, 60 HZ ( 440V /460V is optional )

· One  year  industrial  warranty  for  parts

STANDARD  ACCESSORIES  INCLUDED:



·         20” 3-jaw chuck with top reversible jaws

·         25” 4-jaw chuck with top reversible jaws

·        31-1/2” Face plate

·         12"  Drive  plate

·        20”   Large  steady rest

·         Follow rest

·        Removable gap

·         4-way tool post

·         Foot brake

·         Work light

·         Coolant system

·        Section  splash guard  on  rear  of  carriage

·         (2) Dead Centers and (1) reducing sleeve

·         Thread chasing dial

·        4-Way  rapid  traverse  on  carriage

·         Tool box
